ID # 67663700

2026 Argo X8 Integrator

Call for Price
Overview

AUTONOMOUSLY AWESOME.

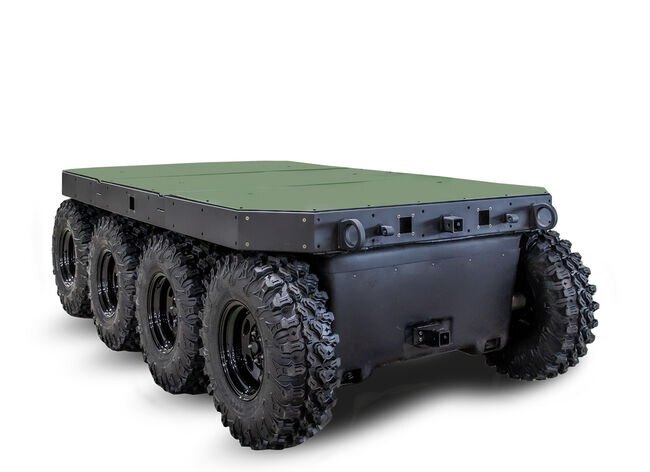

The ARGO X8 Integrator is the autonomously driven UGV solution designed to navigate demanding off-road applications. Ready to interface with your customized autonomy kit, the X8 Integrator features 8x8 skid steer traction, EV Powertrain, Amphibious capabilities, and class leading payload capacity. Available with a 48-Volt 25kWh Lithium-Ion Battery Capacity for extended operating times, the X8 Integrator is customizable and ready to take on the toughest terrain imaginable.

Specifications
Model
Integrator
Category Name
UTV - Side x Side
Year
2026
Sale Type
New
Manufacturer
Argo
Color
green
HUBS
LOCKING/UNLOCKING
TRACTION
8x8 SKID STEER
ARGO TIRES
30" (76 cm)
DIMENSIONS
71" x 125" x 38" (1.80m x 3.17m x 0.97m)
SIDE SLOPE
30% (17 DEGREES)
GVWR (LAND)
6,000 (2,721 kg)
GVWR (WATER)
4,000 lb (1,814 kg)
FORWARD SLOPE
60% (30 DEGREES)
VEHICLE WEIGHT
2,525 lb (1,145 kg)
BATTERY VOLTAGE
48V NOMINAL
MAX SPEED (LOW)
8 mph (13 km/h)
GROUND CLEARANCE
10" (25.4 cm)
MAX SPEED (HIGH)
20 mph (32 km/h)
STORAGE TEMPERATURE
-4 to 140 F (-20 to 60 C)
WATER FORDING DEPTH
2 ft (0.6 m)
TRACTION MOTOR POWER
64HP (47.7 kW)
OPERATING TEMPERATURE
-4 to 122 F (-20 to 60 C)
STEER MOTOR CONTROLLER
CAN MESSAGING
TRACTION MOTOR CONTROLLER
CAN MESSAGING
CHARGING TEMPERATURE (AMBIENT)
32 to 122 F (0 to 50 C)
OPTIONAL 42 KWh BATTERY WEIGHT
630 lb (286 kg)
features

2026 Argo X8 Integrator Electric Battery

The ARGO X8 Integrator UGV platform is designed for the most demanding off-road, autonomous applications. Ready out of the box for your autonomy kit to interface with, the X8 features 8x8 skid steer traction, electric drive train, amphibious capabilities, and class-leading payload capacity; optional Lithium Ion battery capacity up to 42 kWh for extended range missions with a run time up to 7 hours.

2026 Argo X8 IntegratorEase of Maintenance

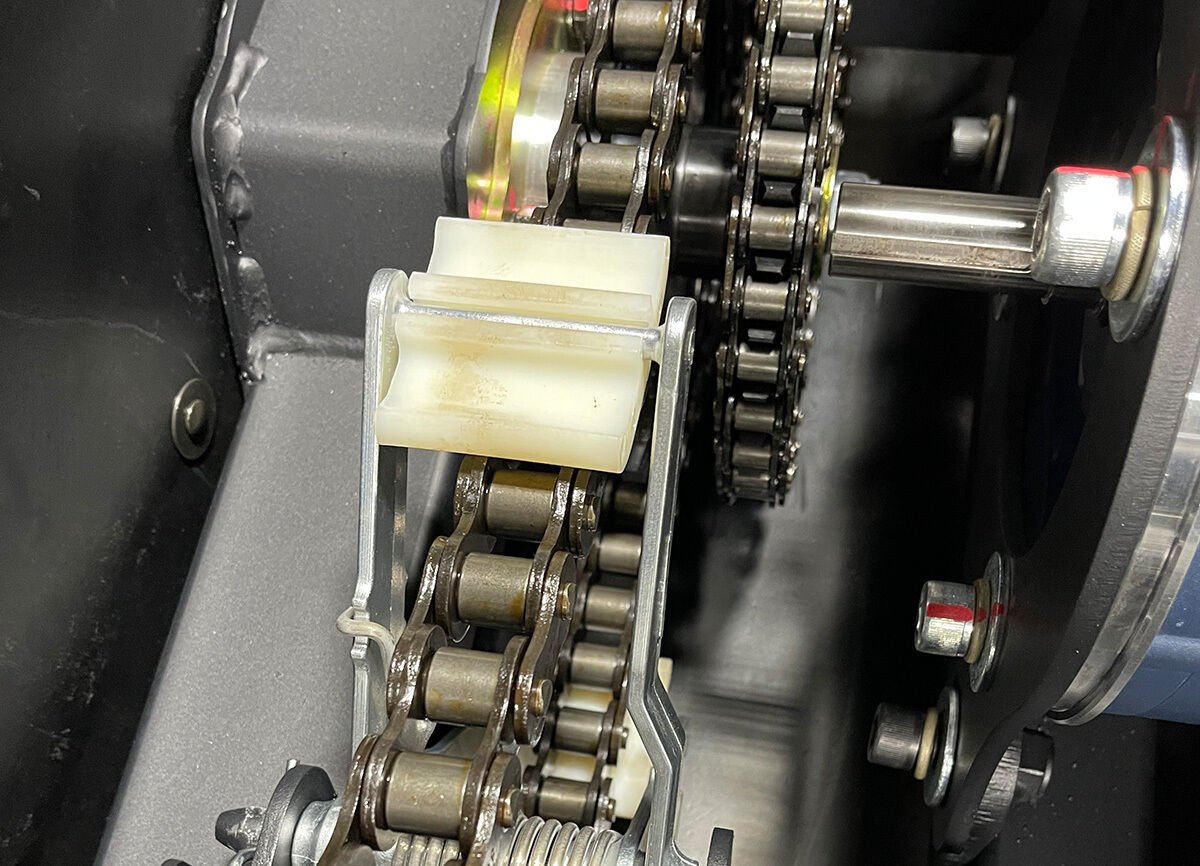

Chains are oil-impregnated, lowering the maintenance burden even further.

2026 Argo X8 IntegratorMulti-Purpose Platform

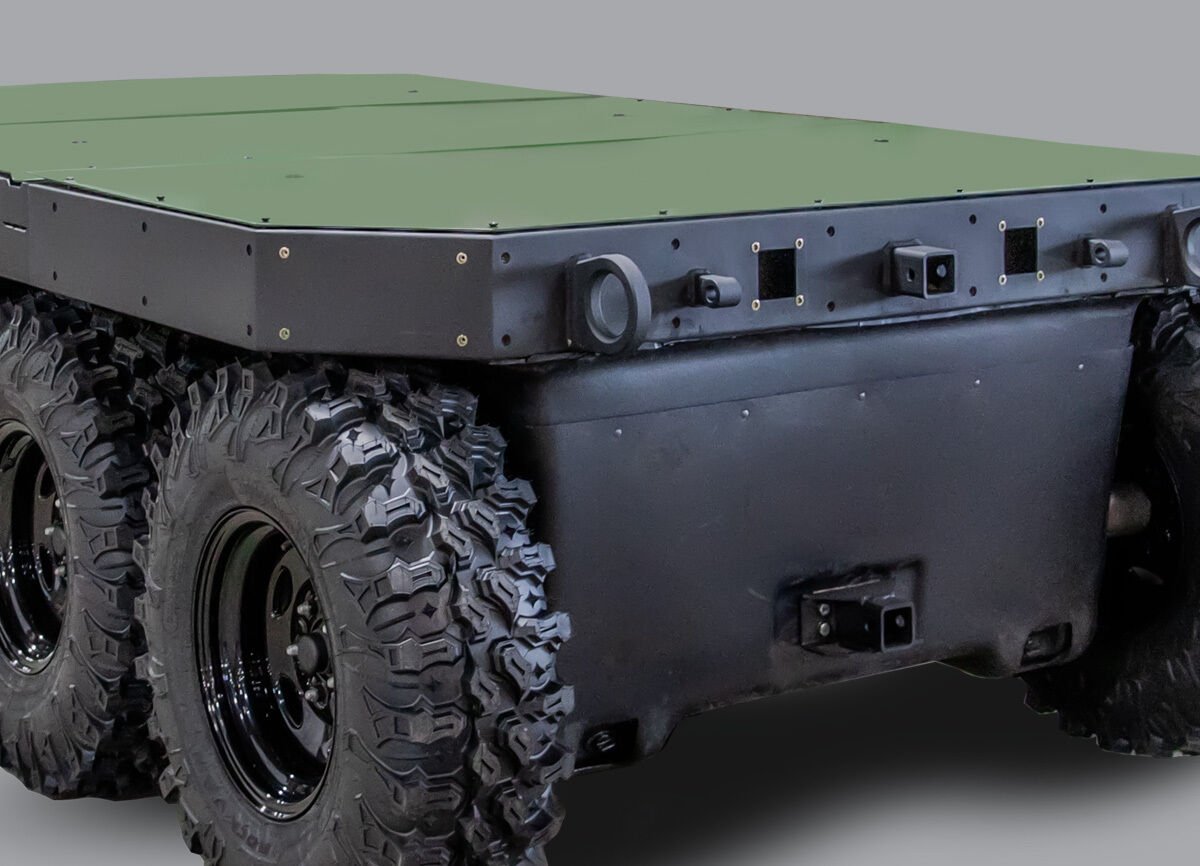

The X8 Integrator is designed with your payload in mind. The X8 Integrator platform has a flat top deck from front to back, giving you endless possibilities for optimizing your vehicle to any application.
